| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSCxx1XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | Juniper |
| TX Power: | -6 ~ -1 DBm | Receiver Sensitivity: | < -10 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | SR 10G SFP+ Fiber Transceiver,DOM SFP+ Fiber Transceiver,EX-SFP-10GE-SR |
||

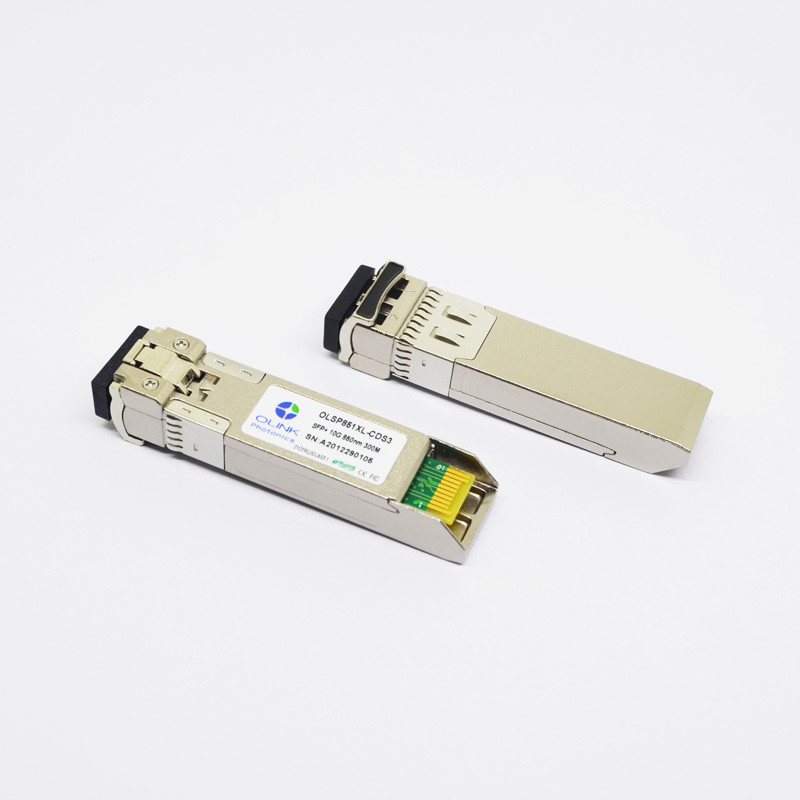

DOM SR 10G SFP+ Fiber Transceiver Juniper Compatible EX-SFP-10GE-SR
Olinkcom 10GBASE-SR SFP+ 850nm 300m Transceiver Juniper Compatible EX-SFP-10GE-SR
Product Features
● Supports up to 11.3Gb/s bit rates
● 850nm VCSEL transmitter
● PIN Receiver
● Duplex LC connector
● Up to 300m on 50/125um MMF(2000MHZ.KM)
● < 1W Power Dissipation
● Digital Diagnostic Monitor Interface
● Operating case temperature: Commerical:0~70°C, Industrial:-40 to 85 °C
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
|
Parameter |
Symbol |
Min. |
Typ |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Operating Wavelength |
λ |
840 |
850 |
860 |
nm |
|
|
Ave. output power (Enabled) |
PAVE |
-6 |
|
-1 |
dBm |
1 |
|
Extinction Ratio |
ER |
4 |
4.5 |
|
dB |
|
|
RMS spectral width |
Δλ |
|
|
1 |
nm |
|
|
Rise/Fall time (20%~80%) |
Tr/Tf |
|
|
50 |
ps |
2 |
|
Dispersion penalty |
TDP |
|
|
3.9 |
dB |
|
|
Output Optical Eye |
Compliant with IEEE 0802.3ae |
|||||
|
Receiver |
||||||
|
Operating Wavelength |
|
840 |
850 |
860 |
nm |
|
|
Receiver Sensitivity(ER=4.5) |
PSEN1 |
|
|
-11.1 |
3 |
|
|
Overload |
PAVE |
|
|
0.5 |
dBm |
|
|
LOS Assert |
Pa |
-30 |
|
|
dBm |
|
|
LOS De-assert |
Pd |
|
|
-12 |
dBm |
|
|
LOS Hysteresis |
Pd-Pa |
0.5 |
|
|
dB |
|
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Product Descriptions
Olinkcom’s OLSP851XL-C(I)DS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over MultiMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication and datacom.
Applications
● 10G Base-SR/SW at 10.3125G
● 10G Fiber Channel
● Other optical links
● 10G Ethernet
Compatibility
Olinkcom's Juniper Compatible 10GBASE-SR SFP+ transceiver can be worked with the below Juniper networks equipment.
• EX2300-24T
• EX2300-24P
• EX3300 Ethernet Switch-EX3300-24T
• EX3300 Ethernet Switch-EX3300-48T
• EX3300 Ethernet Switch-EX3300-48T-BF
• EX3300 Ethernet Switch-EX3300-24P
• EX3300 Ethernet Switch-EX3300-48P
• EX3300 Ethernet Switch-EX3300-24T-DC
• EX3400-24T
• EX3400-24P
• EX3400-24T-DC
• EX3400-48T
• EX3400-48T-AFI
• EX3400-48P
• EX4200-24T
• EX4200-24P
• EX4200-24PX
• EX4200-48T
• EX4200-48P
• EX4200-48PX
• EX4200-24F
• EX4200-24T-DC
• EX4200-48T-DC
• EX4200-24F-DC
• EX4300-24T
• EX4300-24P
• EX4300-48T
• EX4300-48P
• EX4300-48T-AFI
• EX4300-48T-DC
• EX4300-48T-DC-AFI
• EX4300-32F
• EX4300-32F-DC
• EX4550-32F
• EX4550-32T
• EX4600-40F-AFO
• EX4600-40F-AFI
• EX4600-40F-DC-AFO
• EX4600-40F-DC-AFI
• EX8216
• EX9204 Ethernet Switch
• EX9208 Ethernet Switch
• EX9214 Ethernet Switch
• QFX5100-48S
• QFX5100-48T
• QFX5100-24Q
• QFX5100-24Q-AA
• QFX5200-32C
• QFX5200-64Q
• QFX10008 Ethernet Switch
• QFX10016 Ethernet Switch
• QFX10000-36Q
• QFX10000-30C
• QFX10000-60S-6Q
• SRX1400BASE-GE
• SRX1400BASE-XGE
