| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP311XL-CD40 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatibility: | Cisco | Data Rate: | 11.3Gb/s Bit Rates |
|---|---|---|---|
| Form Factor: | SFP+ | DDM/DOM: | Supported |
| Connector: | LC Duplex | Wavelength: | 1310nm |
| Distance: | 40km | Fiber Type: | SMF |
| Temperature: | 0~70 °C | Warranty: | 3 Years |

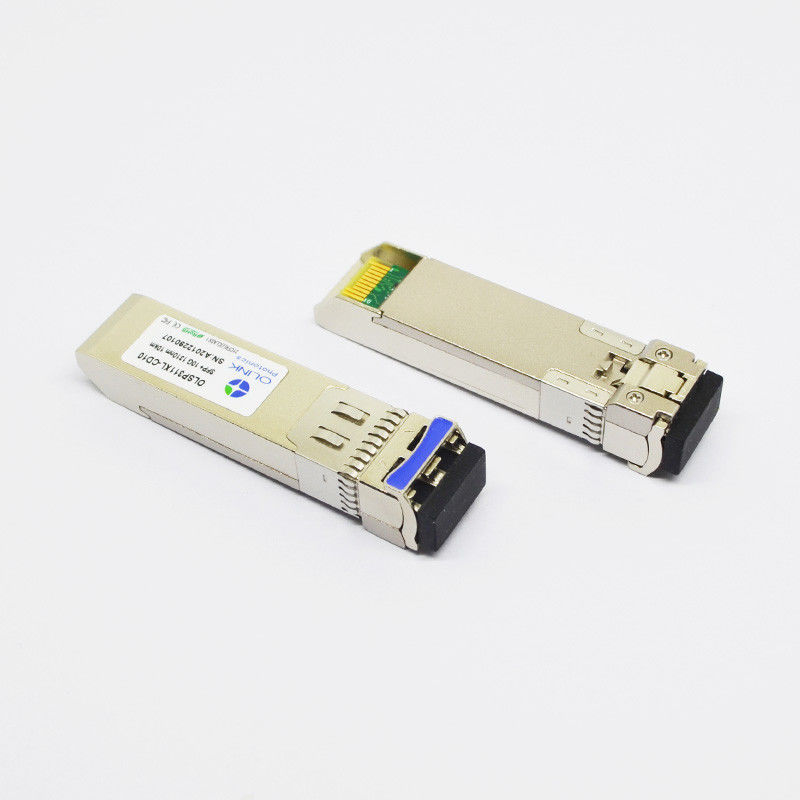

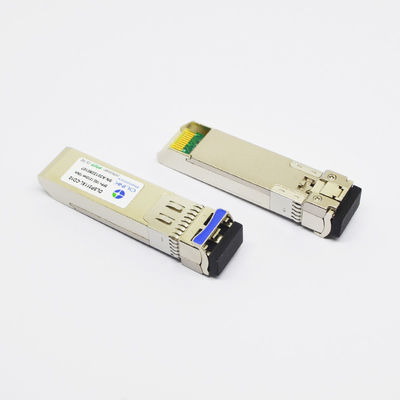

Cisco Compatible 10G SFP+ 1310nm 40km DOM LC SMF Fiber Optic Transceiver
Product Descriptions
This fiber optic transceiver are designed for use in 10-Gigabit Ethernet links up to 40km over G.652 SingleMode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER/EW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12.
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1310nm DFB transmitter, PIN photo-detector
● Applicable for 40km SMF connection
● Low power consumption, < 1.3W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-ER
● Electrical interface compliant to SFF-8431,SFF-8432
● Operating case temperature: Commerical:0 to 70 °C
Applications
● 10GBASE-ER/EW at 10.3125Gbps
● OTN G.709 OTU1e/2/2e
● 4x, 8x and 10x 10G Fiber Channel
● Other optical links
We not only provide most of major brands compatible, like Cisco, Juniper, Alcatel, Extreme, Brocade etc, but also support the customization.
