| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP851XL-C(I)DS3 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | Mellanox |
| TX Power: | -6 ~ -1 DBm | Receiver Sensitivity: | < -10 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | ISO 10G SFP+ Fiber Transceiver,10Gbps SFP+ Fiber Transceiver,10Gbps SFP+Transceiver |
||

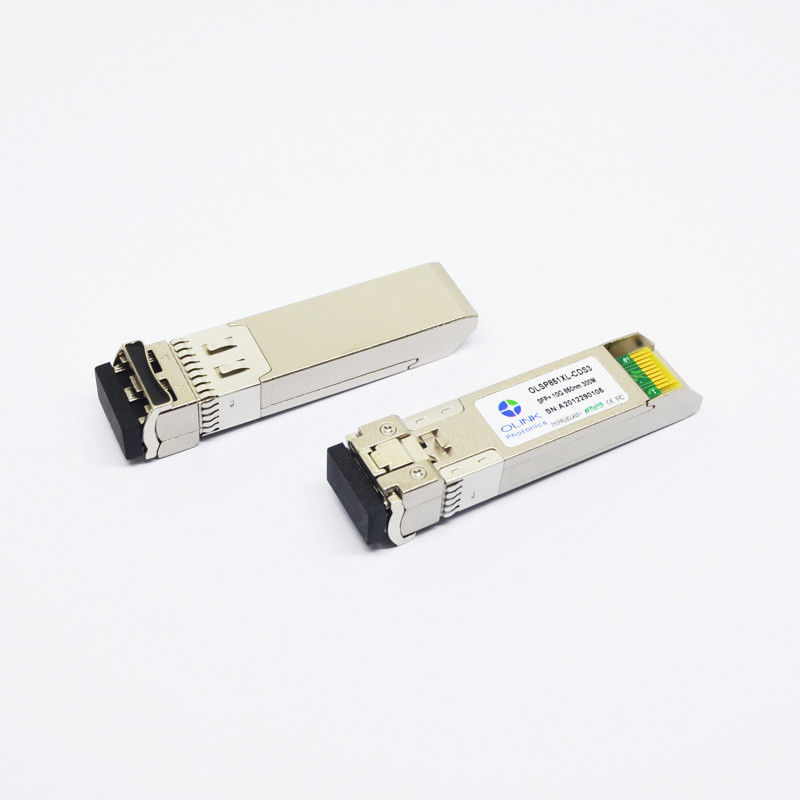

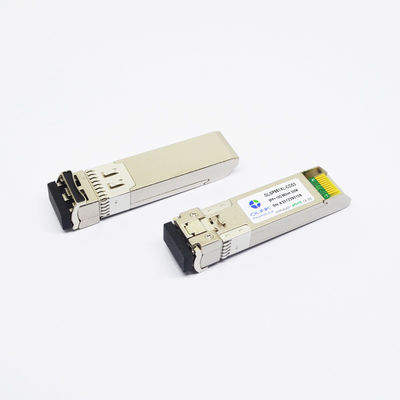

Mellanox Compatible 10G SFP+ Fiber Transceiver 10GBASE-SR ISO9001
Mellanox MFM1T02A-SR Compatible 10GBASE-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM)
The Mellanox MFM1T02A-SR compatible transceiver provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) fiber connectivity over multi-mode optical cable. It is programmed to be suitable for use with Mellanox 10-Gigabit Ethernet Switches, Security gateway appliances and Network Adapters.
Product Features
● SFP+ Form factor compliant with SFP+ MSA SFF-8431 and SFF-8461 standard
● Hot-swappable input/output device plugs into 10 Gigabit Ethernet SFP+ port
● Digital optical monitoring (DOM) capability for diagnostics
● Supports up to 11.3Gb/s bit rates
● Mellanox Compatible
● Up to 300m Reach
● 850nm Wavelength
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
|
Parameter |
Symbol |
Min. |
Typ |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Operating Wavelength |
λ |
840 |
850 |
860 |
nm |
|
|
Ave. output power (Enabled) |
PAVE |
-6 |
|
-1 |
dBm |
1 |
|
Extinction Ratio |
ER |
4 |
4.5 |
|
dB |
|
|
RMS spectral width |
Δλ |
|
|
1 |
nm |
|
|
Rise/Fall time (20%~80%) |
Tr/Tf |
|
|
50 |
ps |
2 |
|
Dispersion penalty |
TDP |
|
|
3.9 |
dB |
|
|
Output Optical Eye |
Compliant with IEEE 0802.3ae |
|||||
|
Receiver |
||||||
|
Operating Wavelength |
|
840 |
850 |
860 |
nm |
|
|
Receiver Sensitivity(ER=4.5) |
PSEN1 |
|
|
-11.1 |
3 |
|
|
Overload |
PAVE |
|
|
0.5 |
dBm |
|
|
LOS Assert |
Pa |
-30 |
|
|
dBm |
|
|
LOS De-assert |
Pd |
|
|
-12 |
dBm |
|
|
LOS Hysteresis |
Pd-Pa |
0.5 |
|
|
dB |
|
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Digital Diagnostic Specifications
The OLSP851XL-C(I)DS3 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
|
Parameter |
Symbol |
Units |
Min. |
Max. |
Accuracy |
Note |
|
Transceiver temperature |
DTemp-E |
ºC |
-45 |
+90 |
±5ºC |
1 |
|
Transceiver supply voltage |
DVoltage |
V |
2.8 |
4.0 |
±3% |
|
|
Transmitter bias current |
DBias |
mA |
0 |
80 |
±10% |
2 |
|
Transmitter output power |
DTx-Power |
dBm |
-8 |
+1 |
±2dB |
|
|
Receiver average input power |
DRx-Power |
dBm |
-13 |
0 |
±2dB |
|
Notes:
1. Internally measured
2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Wide Application
● Widely used on 10G switches, routers, servers, NICs and other transmission equipment
● Suitable for data center, enterprise wiring closet, radio & baseband unit and other environments
● Fully compatible with major networking equipment vendors worldwide
