| Product Name: | 10G SFP+ 850nm 300m | Compatible OEM: | Intel |
|---|---|---|---|
| Speed Description: | 10-Gigabit | Form Type: | SFP+ |
| Wavelength: | 850nm | Reach: | 300m |
| TX Power: | -6 ~ -1 DBm | Receiver Sensitivity: | < -10 DBm |
| DOM: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | SR SFP+ Optical Module,10GBase SFP+ Optical Module,SR 10g sfp+ |
||
10GBase SR SFP+ Optical Module Multi Mode Fiber 850nm 300m DDM

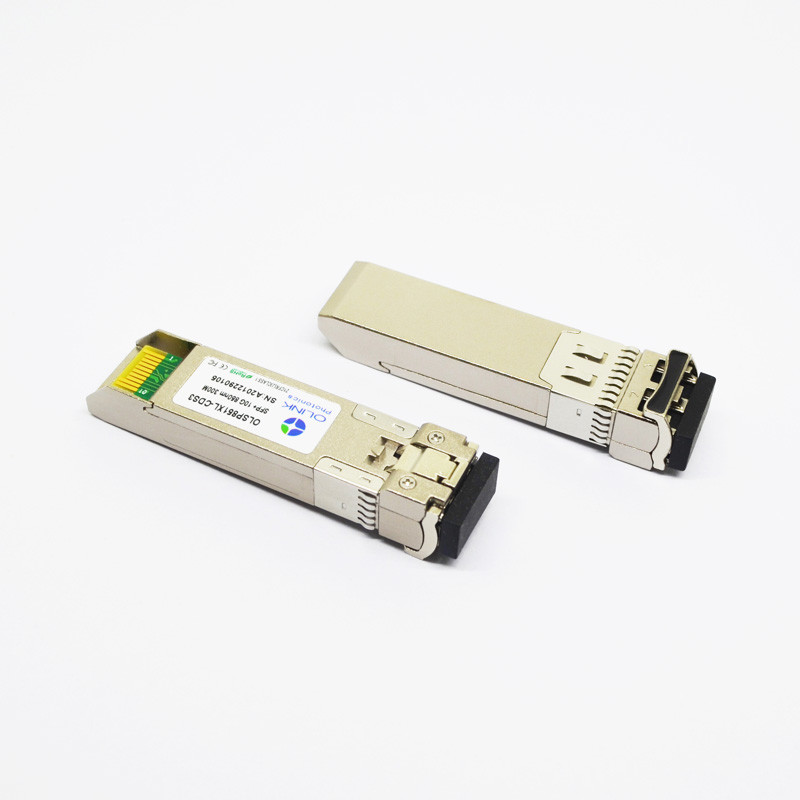

Intel E10GSFPSR Compatible 10G SFP+ SR Optics Module (MMF, 850nm, 300m, LC, DDM)
The Intel E10GSFPSR compatible optics is high performance and cost effective SFP+ SR transceiver. It supports data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode fiber cable. It is programmed to be compatible with a wide range of Intel Switches, Routers, Network Interface Cards (NICs) and Ethernet Media Converters
Product Features
● Compliant to SFP+ Electrical MSA SFF-8431
● Compliant to SFP+ Mechanical MSA SFF-8432
● Multi rate of up to 11.3Gb/s
● 10G Ethernet compliance or SDH/SONET
● Low power consumption
● 0℃ to +70℃ / -40~85℃ case operating temperature range
● Laser Class 1 IEC / CDRH compliant
● RoHS 6/6 compliant
● Compliant with product safety standards
General Operating Characteristics
|
Parameter |
Symbol |
Min. |
Typ |
Max. |
Unit |
Note |
|
Data Rate |
DR |
9.953 |
10.3125 |
10.518 |
Gb/s |
|
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Supply Current |
Icc5 |
|
|
280 |
mA |
|
|
Operating Case Temp. |
Tc |
0 |
|
70 |
°C |
|
|
TI |
-40 |
|
85 |
|
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
|
Parameter |
Symbol |
Min. |
Typ |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Operating Wavelength |
λ |
840 |
850 |
860 |
nm |
|
|
Ave. output power (Enabled) |
PAVE |
-6 |
|
-1 |
dBm |
1 |
|
Extinction Ratio |
ER |
4 |
4.5 |
|
dB |
|
|
RMS spectral width |
Δλ |
|
|
1 |
nm |
|
|
Rise/Fall time (20%~80%) |
Tr/Tf |
|
|
50 |
ps |
2 |
|
Dispersion penalty |
TDP |
|
|
3.9 |
dB |
|
|
Output Optical Eye |
Compliant with IEEE 0802.3ae |
|||||
|
Receiver |
||||||
|
Operating Wavelength |
|
840 |
850 |
860 |
nm |
|
|
Receiver Sensitivity(ER=4.5) |
PSEN1 |
|
|
-11.1 |
3 |
|
|
Overload |
PAVE |
|
|
0.5 |
dBm |
|
|
LOS Assert |
Pa |
-30 |
|
|
dBm |
|
|
LOS De-assert |
Pd |
|
|
-12 |
dBm |
|
|
LOS Hysteresis |
Pd-Pa |
0.5 |
|
|
dB |
|
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
The OLSP851XL-C(I)DS3 is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. OLSP851XL-C(I)DS3 must be operated within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
