| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10G |
|---|---|---|---|
| Fiber Type: | Multi Mode | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | TP-Link |
| TX Power: | -6 ~ -1 DBm | Receiver Sensitivity: | < -10 DBm |
| High Light: | 10G SFP+ Multi Mode Transceiver,300m SFP+ Multi Mode Transceiver,10GBASE-SR Transceiver |
||

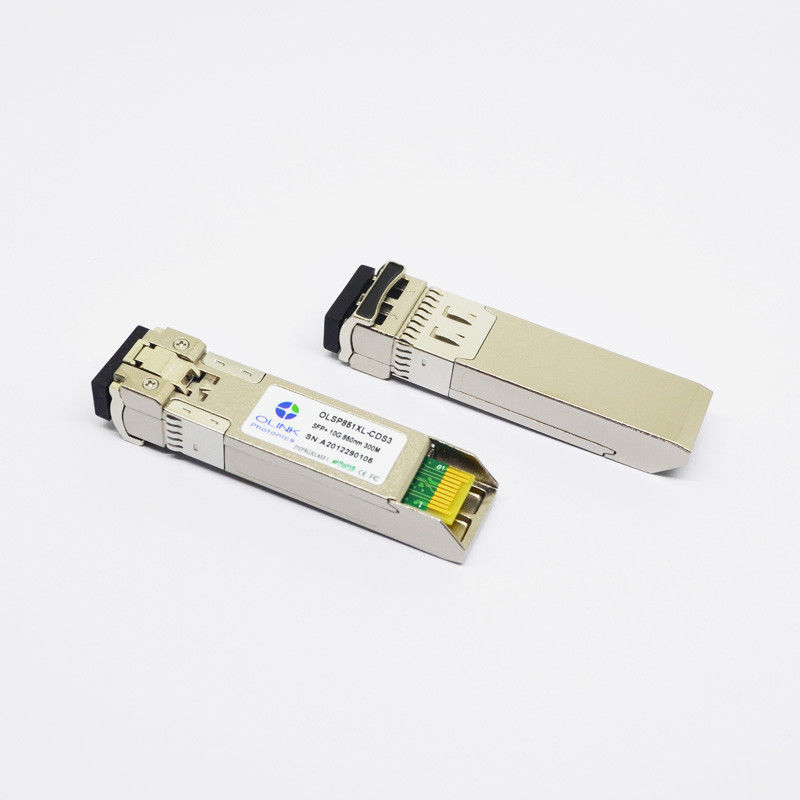

OLSP851XL-C(I)DS3 is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
• Up to 11.1Gbps Data Links
• Up to 300m transmission on MMF
• Power dissipation < 1W
• VSCEL laser and PIN receiver
• Metal enclosure, for lower EMI
• 2-wire interface with integrated Digital Diagnostic monitoring
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Electrical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | 2 | Vcc_HOST | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
• T1700G-28TQ: JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
• T2700G-28TQ: JetStream 28-Port Gigabit Stackable L2+ Managed Switch
• T3700G-28TQ: JetStream 28-Port Gigabit Stackable L3 Managed Switch
We make sure our transceivers are tested rigorously by Certified technicians, and cover each item by 3 years warranty. Contact us for more information and configuration support on the SFP-10G-SR.
